Full Description

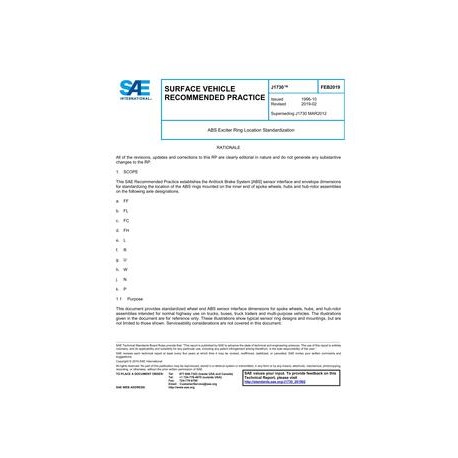

This SAE Recommended Practice establishes the Antilock Brake System [ABS] sensor interface and envelope dimensions for standardizing the location of the ABS rings mounted on the inner end of spoke wheels, hubs and hub-rotor assemblies on the following axle designations.

a. FF
b. FL
c. FC
d. FH
e. L
f. R
g. U
h. W
j. N
k. P

Product Details

Published: 02/11/2019 File Size: 1 file , 650 KB Redline File Size: 2 files , 3.8 MB
