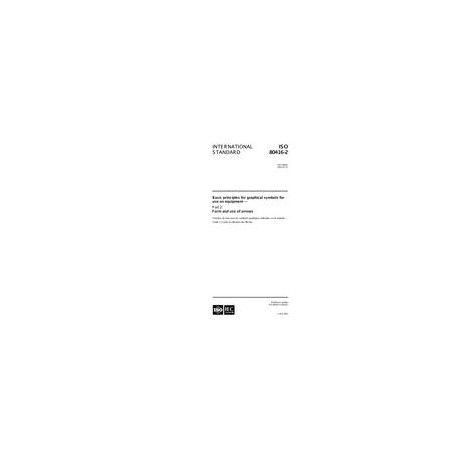

ISO 80416-2:2001
M00008087
New product
ISO 80416-2:2001 Basic principles for graphical symbols for use on equipment -- Part 2: Form and use of arrows
standard by International Organization for Standardization, 07/15/2001
In stock
More info
Full Description
ISO 80416-2 lays down the basic principles and the proportions for arrows used to indicate various elements, forces, functions or dimensions. The arrows defined in ISO 80416-2 are used as graphical symbols or graphical symbol elements.
When new symbol originals are created or graphical symbols in current use are revised, the principles established in ISO 80416-2 are applicable.
