ASTM A325-10e1
M00010022
New product

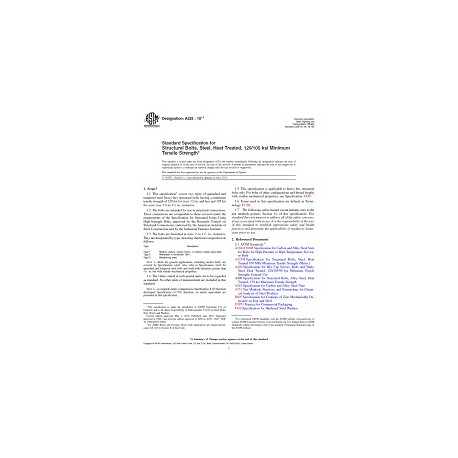

ASTM A325-10e1 Standard Specification for Structural Bolts, Steel, Heat Treated, 120/105 ksi Minimum Tensile Strength
standard by ASTM International, 05/01/2010
In stock
More info
Full Description
1.1This specification2 covers two types of quenched and tempered steel heavy hex structural bolts having a minimum tensile strength of 120 ksi for sizes 1.0 in. and less and 105 ksi for sizes over 1.0 to 11/2in., inclusive.
1.2The bolts are intended for use in structural connections. These connections are comparable to those covered under the requirements of the Specification for Structural Joints Using High-Strength Bolts, approved by the Research Council on Structural Connections; endorsed by the American Institute of Steel Construction and by the Industrial Fastener Institute.
1.3The bolts are furnished in sizes 1/2to 11/2in., inclusive. They are designated by type, denoting chemical composition as follows:
Type | Description |
Type 1 | Medium carbon, carbon boron, or medium carbon alloy steel. |
Type 2 | Withdrawn in November 1991. |
Type 3 | Weathering steel. |
Note 1-Bolts for general applications, including anchor bolts, are covered by Specification A449. Also refer to Specification A449 for quenched and tempered steel bolts and studs with diameters greater than 11/2in. but with similar mechanical properties.
1.4The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
Note 2-A complete metric companion to Specification A325 has been developed, Specification A325M; therefore, no metric equivalents are presented in this specification.1.5This specification is applicable to heavy hex structural bolts only. For bolts of other configurations and thread lengths with similar mechanical properties, see Specification A449.
1.6Terms used in this specification are defined in Terminology F1789.
1.7The following safety hazard caveat pertains only to the test methods portion, Section 10, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
